Advance Equipments is a leading
manufacturer, supplier, and exporter of Thermal Impact Chambers / Thermal Shock Chambers in India. Designed to simulate extreme and rapid temperature variations, these chambers are widely used for
environmental stress testing to identify material and component flaws under sudden thermal shocks.
Built as per
IS 9000, JSS 55555, JSS 50101, MIL STD 750, 810, 883, and IEC-60068 standards, our chambers offer
high performance, reliability, and durability for testing products used in critical applications such as
aerospace, defense, automotive, and electronics.
❱ Working Principle

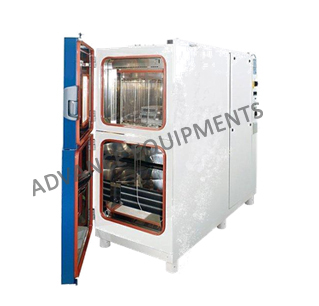

The
Thermal Shock Chamber operates with
two independent zones (hot and cold) and an optional third zone. A single
basket-type product carrier moves vertically between the zones via a
robust electro-pneumatic system, subjecting the specimen to sudden temperature changes. This intense cycle replicates real-world environmental stress to detect potential flaws, cracks, or failures in the material.
❱ Key Features
➙ Dual-Zone Design – Separate hot and cold zones for precise control
➙ Fast Basket Transition – 5 to 30 seconds transfer time for thermal shock
➙ Advanced Digital Controller – Accurate temperature programming and monitoring
➙ Eco-Friendly Refrigeration – Non-CFC cascade refrigeration system
➙ Sturdy & Mobile Design – Integrated mono-block structure with castor wheels
➙ Compliance with Global Standards – IS, JSS, MIL, and IEC specifications
❱ Models & Technical Specifications
Model |
Basket/Test Space (W×D×H) |
Capacity |
Zone 1 Temp |
Zone 2 Temp |
Transition Time |
Movement |
AE-25-B2V |
250 × 250 × 400 mm |
25 L |
+60°C to +200°C |
0°C to -75°C |
5–30 sec |
Vertical |
AE-64-B2V |
400 × 400 × 400 mm |
64 L |
+60°C to +200°C |
0°C to -75°C |
5–30 sec |
Vertical |
AE-120-B2V |
550 × 550 × 400 mm |
121 L |
+60°C to +200°C |
0°C to -75°C |
5–30 sec |
Vertical |
❱ Applications
➙ Aerospace & Aviation Components
➙ Defense & Military Equipment
➙ Automotive Parts & Electronics
➙ Semiconductors & PCB Testing
➙ Material R&D & Reliability Testing
❱ Benefits
➙ Detects
thermal stress-induced failures early
➙ Fully compliant with
IS, JSS, MIL, and IEC standards
➙ Robust design for
continuous test cycles
➙ Low maintenance & energy-efficient operation
❱ FAQ Section (10 Questions)
Q1: What is a Thermal Impact or Thermal Shock Chamber?
It is a testing system that subjects materials to rapid temperature changes to identify structural weaknesses or flaws.
Q2: Which standards does this chamber comply with?
It meets IS 9000, JSS 55555, JSS 50101, MIL STD 750/810/883, and IEC 60068.
Q3: How many zones does the chamber have?
It comes with two independent zones (hot and cold) and an optional third zone.
Q4: What temperature ranges are supported?
Hot Zone: +60°C to +200°C; Cold Zone: 0°C to -75°C.
Q5: What is the transition time between zones?
The basket transfer takes 5 to 30 seconds, ensuring a rapid thermal shock effect.
Q6: How is the basket movement achieved?
It uses a robust electro-pneumatic mechanism for smooth vertical movement.
Q7: What are the available capacities?
Models are available in 25 L, 64 L, and 121 L capacities.
Q8: Which industries use thermal shock chambers?
Aerospace, automotive, electronics, defense, and R&D sectors.
Q9: Is the system energy efficient?
Yes, it uses a Non-CFC cascade refrigeration system for eco-friendly performance.
Q10: Do you provide after-sales support?
Yes, we provide installation, calibration, and maintenance services.
