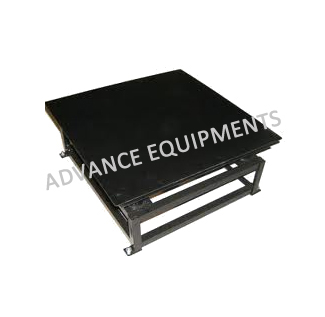

Vibration Table, Vibration Table Machine, Mumbai, India

We are leading Vibration Table, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.

To check the impact effect on the seat surface of the plastic molded chairs.

Specifications :

→ It is designed to carry a load of 140 kg. The apparatus
consists of a motor fitted with a Variable pitch pulley
housed in a cabinet.

→ The vibrations are imparted by means of off-balance
masses rotating on a shaft of a Vibrator clamped to
the underside of the table top.

→ The table top is 50cm x 50cm. and has stops along
its edges to prevent moulds from Walking off the table
during vibration.

→ A cross arm adjustable on a vertical rod at the center
of The table is provided to hold the moulds while operating
the table.

→ The variable pitch pulley arrangement permits the
frequency to be varied sleeplessly Between a maximum
of 1400 vibrations per minute.

→ Digital Frequency Indicator + controller with resolution
of 1 Hz

→ Digital indicator for amplitude measurement.

→ Electric Supply of 440 volts, 3 phase, 50 Hz

→ Vibrating Tables of table top size 50cm x 50cm as
well as 1000cm x 100cm are also available.
(OR as per customer’s choice.)
