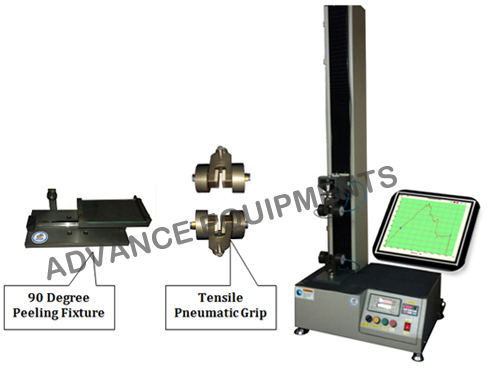

Digital Peel Tester Manufacturers, Suppliers & Exporters

We are leading Digital Peel Tester As per ASTM/ISO/IS standards Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.

For Peel, Bond, and Seal Strength Testing | ASTM / ISO / IS Compliant

Advance Equipments is a leading manufacturer, supplier, and exporter of Digital Peel Testers in India. Designed as per ASTM, ISO, and IS standards, this advanced peel testing machine ensures accurate measurement of peel strength, bond strength, seal strength, and coefficient of friction (COF).

The Digital Peel Tester is an essential instrument for quality control and R&D labs in industries such as packaging, polymer, adhesive tape, films, and laminates. With computerized control, graphical reporting, and high precision load cell, this tester delivers consistent and repeatable results for compliance and performance verification.

❱ Key Features

➙ Complies with ASTM, ISO, and IS standards
➙ Performs Multiple Tests: Peel, Bond, Seal, COF, and Tensile
➙ Advanced Software Integration for real-time data and graphical reports
➙ Digital Display with PC Connectivity (RS-232 / USB)
➙ High Accuracy Load Cell with 1 g resolution
➙ Customizable Speed and Displacement Settings
➙ Table-Top Design with Powder-Coated Finish

❱ Technical Specifications

Parameter	Specification
Model	AE-PBSCT-1LC-50-FC
Mechanism	Single Column
System Status	Computerized + Digital
Software	AE-Embedded
Data Entry	Through Software or Console
PC Connectivity	RS-232 (USB Optional)
Reports	Graphical + Data via software
Units	KG, Newton, Pound, cm, mm, inch
Data Merging Facility	Available
Load Cell	50 Kg with 1 g resolution
Cross Travel	1000 mm
Resolution of Displacement	0.1 mm
Test Speed	10 – 500 mm/min (optional ranges available)
Report Parameters	Peak Load, Break Load, Elongation @ Peak & Break, Tensile Strength, % Elongation, Young’s Modulus, Yield Load & Stress, Load vs. Elongation Graph, Peel Strength, Bond Strength, Static & Dynamic Friction
Accessories	Rubber Padded Grip – 1 Pair (Optional Grips available)
Power Supply	230 VAC / 50 Hz
Power Consumption	750 W
Finish	Powder Coated

❱ Applications

➙ Packaging Industry: Peel and seal strength of pouches & laminates
➙ Adhesive Industry: Bond strength of tapes and films
➙ Polymer & Plastic Films: Peel adhesion tests for quality assurance
➙ Food & Pharma Packaging: Seal strength verification
➙ R&D and QC Labs: Friction and tensile testing

❱ Benefits

➙ Multi-Functionality – One machine for peel, bond, seal, COF, and tensile tests
➙ Accurate and Repeatable Results
➙ Complies with International Standards (ASTM/ISO)
➙ User-Friendly Operation with Graphical Reporting
➙ Compact, Durable Table-Top Design

❱ FAQ Section

Q1: What is a Digital Peel Tester?

It is an advanced testing machine used to measure peel strength, bond strength, seal strength, and COF for packaging and adhesive materials.

Q2: Which standards does it comply with?
It complies with ASTM, ISO, and IS standards for peel and bond testing.

Q3: What is the load capacity?
50 Kg with 1 g resolution (customizable as per requirements).

Q4: What tests can it perform?
Peel, bond, seal strength, coefficient of friction, and tensile tests.

Q5: Is it computer-controlled?
Yes, it has embedded software for data acquisition and graphical reporting.

Q6: Can reports be printed?
Yes, reports can be printed through integrated software.

Q7: What is the speed range?
10 – 500 mm/min (other speeds optional).

Q8: What accessories are included?
One pair of rubber padded grips (optional grips available).

Q9: Where is this tester used?
In packaging, adhesive, polymer, and R&D industries.

Q10: Do you provide after-sales service?
Yes, we provide installation, training, and maintenance support.
