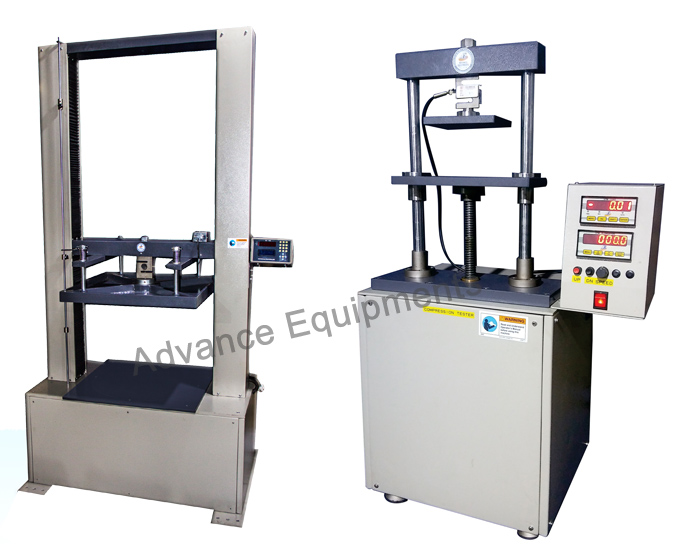

Compression Tester – Computerised | ASTM D695

Q: Which ASTM standard does this model comply with?

This model complies with ASTM D695.

Q: What is the maximum load capacity?

Up to 4000 Kgf (customization available).

Advanced ASTM D695 Compliant Testing System | Advance Equipments

We are leading Compression Tester - Computerised, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.

Advance Equipments is a leading Compression Tester – Computerised manufacturer, supplier, and exporter in India, offering highly precise machines designed for compressive strength testing of plastics, polymers, rubbers, textiles, packaging products, automotive components, and more.

Built as per ASTM D695, ISO, and IS standards, this advanced system provides automated testing, high-speed data acquisition, and customized reporting features, making it an ideal choice for quality control labs, R&D centers, and industrial testing environments.

❱ Applications

➙ Plastic and Polymer Testing
➙ Rubber Industry
➙ Packaging and Textile Quality Testing
➙ Automotive and Aerospace Component Testing
➙ Pharmaceutical and Engineering Industries

❱ Key Features

➙ ASTM, ISO & IS Compliant – International standard accuracy
➙ Microprocessor-Based Controller – Advanced AE Make controller for reliability
➙ Computerised Control with AE Embedded Software – Windows-compatible (Win 98 to Win 7)
➙ Custom Report Generation – Includes mean and standard deviation analysis
➙ Digital Data Logging – Supports graphical representation and multiple units

❱ Technical Specifications

Parameter	Specification
Reference Standards	ASTM D695, ISO, IS
Horizontal Daylight	750 mm
Cross Travel	600 mm (with compression plate)
Resolution of Displacement	0.01 mm
Speed Range	10 – 210 mm/min (custom options available)
Machine Capacity	Up to 4000 Kgf (customizable)
Resolution of Load	1 Kg
Controller	Microprocessor-based (AE Make)
Software	AE Embedded (Windows 98 to Windows 7)
Communication	RS-232 (USB optional)
Reports	Custom formats with mean & standard deviation
Power Supply	440 VAC / 50 Hz
Power Consumption	2.2 KW
Finish	Powder-coated

❱ Benefits

➙ Fully computerised control for precision and automation
➙ Real-time data analysis with graphical reports
➙ Customizable reporting formats with statistical evaluation
➙ High durability and compliance with global standards

❱ FAQ Section (10 Questions)

Q1: What is a Computerised Compression Tester?
It is an advanced machine used for determining the compressive strength of materials with computer-controlled operations.

Q2: Which ASTM standard does this model comply with?
This model complies with ASTM D695.

Q3: What is the maximum load capacity?
Up to 4000 Kgf (customization available).

Q4: What is the speed range?
The standard speed range is 10 – 210 mm/min.

Q5: Does it support computer connectivity?
Yes, via RS-232 (USB optional).

Q6: What kind of reports does it generate?
Custom reports with mean and standard deviation analysis, plus graphical representation.

Q7: Is the software compatible with modern operating systems?
The AE Embedded software works on Windows 98 to Windows 7; upgrades available on request.

Q8: What is the resolution of displacement and load?
Displacement: 0.01 mm, Load: 1 Kg.

Q9: Is it suitable for automotive and aerospace testing?
Yes, it is widely used for high-strength component testing in these sectors.

Q10: Do you offer after-sales support?
Yes, we provide installation, training, and calibration services.
