We are leading Tensile Machine - Computerised As per as per ASTM D - 638 / ASTM D – 882 Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.

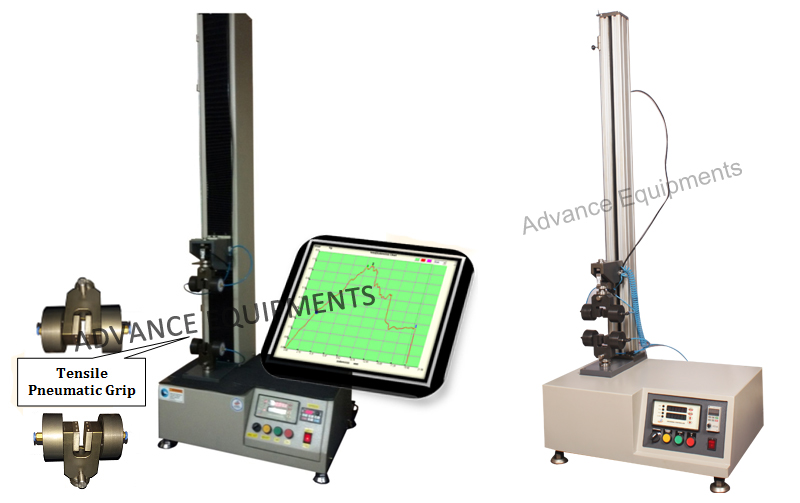

Advanced Computerized Tensile Testing Equipment | ASTM D638 / D882 Compliant
Advance Equipments is a leading
manufacturer, supplier, and exporter of Computerised Tensile Machines in India. Designed for
precision tensile and elongation testing as per
ASTM D638, ASTM D882, ISO, and IS standards, this model offers
automated control, real-time graphical analysis, and accurate data reporting.
Ideal for
plastic, polymer, rubber, packaging, and composite industries, the
Computerised Tensile Machine ensures
unmatched accuracy and repeatability, making it the perfect choice for
quality control, R&D, and production environments.
❱ Key Features
➙ Fully
Computer-Controlled System with user-friendly software
➙ Complies with
ASTM D638 / ASTM D882 for tensile and elongation testing
➙ Provides
Graphical Output & Statistical Reports
➙ Measures
tensile strength, yield point, elongation, and Young’s modulus
➙
Multi-Unit Display: KG, Newton, Pound, cm, mm, inch
➙
Data Merging Facility for comprehensive analysis
❱ Technical Specifications
Parameter |
Specification |
Model |
AE-TT-C-1LC-500 |
Load Capacity |
500 Kg (Others optional) with 10 g resolution |
Load Cell |
1 No (Additional optional) |
Cross Travel |
1000 mm with 0.01 mm resolution |
Test Speed |
10–500 mm/min (Others optional) |
Reports |
Graphical + Data through software |
Report Parameters |
Peak Load, Break Load, Yield Load, Elongation @Peak/Break/Yield, Tensile Strength, % Elongation, Young’s Modulus, Load vs. Elongation Graph |
Accessories |
Pneumatic Grip – 1 Pair |
Power Supply |
230 VAC / 50 Hz |
Construction |
Table Top Model, Powder-Coated Finish |
❱ Applications
➙ Plastic and Polymer Testing
➙ Rubber and Packaging Materials
➙ Composite and Film Testing
➙ Research & Development Laboratories
➙ Quality Control in Manufacturing
❱ Benefits
➙
Automated Testing with Real-Time Data
➙
Compliant with International Standards (ASTM, ISO, IS)
➙
High Accuracy & Repeatability for critical applications
➙
Compact Table Top Design for easy lab installation
➙
Customizable Load Capacities and Speeds
❱ FAQ Section
Q1: What is a Computerised Tensile Machine?
It is an advanced tensile testing machine equipped with
software control for real-time data recording and analysis.
Q2: Which standards does it comply with?
Complies with
ASTM D638, ASTM D882, ISO, and IS standards.
Q3: What is the load capacity?
Standard capacity is
500 Kg, with optional higher capacities available.
Q4: What tests can it perform?
Tensile strength, elongation, yield load, Young’s modulus, and more.
Q5: Does it provide graphical reports?
Yes, reports include
Load vs. Elongation Graphs and statistical data.
Q6: What is the minimum and maximum test speed?
10 mm/min to 500 mm/min (others optional).
Q7: Is data merging possible?
Yes, it includes a
data merging feature for combined analysis.
Q8: Is it suitable for plastic and polymer testing?
Yes, it is widely used in
plastic, polymer, and film testing.
Q9: What accessories are provided?
Standard machine includes
pneumatic grips.
Q10: Is it easy to install?
Yes, it is a
compact table-top model, suitable for laboratories.
